Sunday Ranger 18" Frame

The Sunday Ranger 18" Frame is a pro level frame, just scaled down for the smaller riders. With the younger generation progressing at such a fast pace it only makes sense to have a frame that can withstand pro level riding. The Ranger 18" frame is made from 100% chromoly and has a geometry that aides the progression of riding.

• 100% 4130 Chromoly Frame
• Proven pro-level geometry adjusted for 18” wheels.

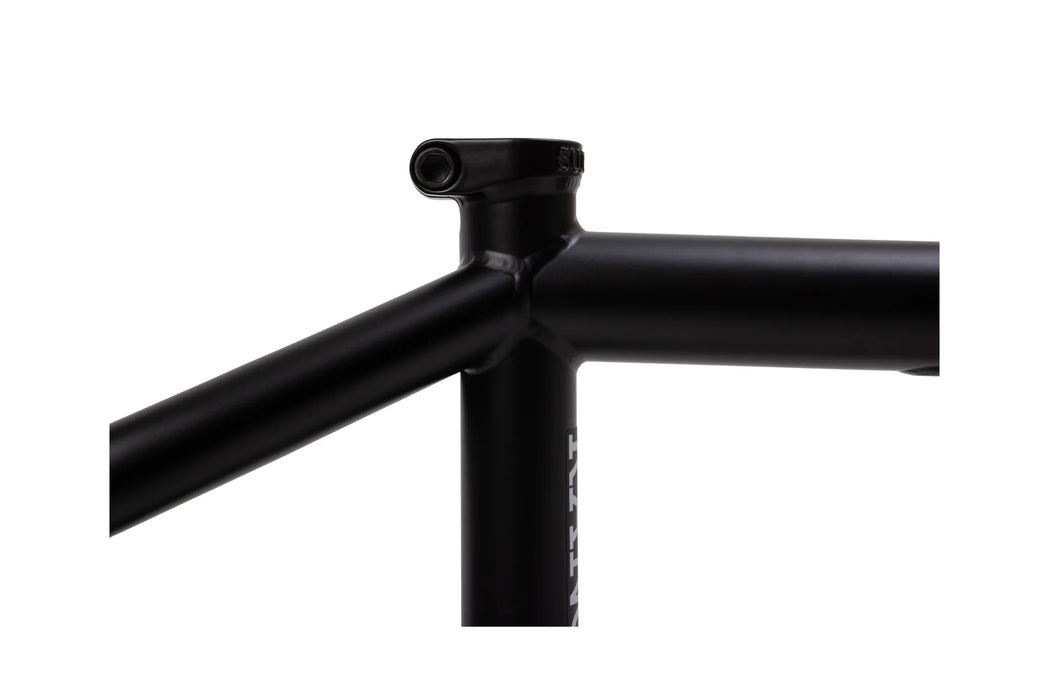

• Integrated seat clamp
• Butted Seat Tube & Miter Cut Top Tube:
  A miter-cut top tube creates a precise joint with the seat stays during welding. This increases the strength substantially over frames that use a “sandwiched” top tube at this critical junction.
• Tapered Chain & Seat Stays:
  Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. They are both angled on the inside for improved chain clearance and weight savings.

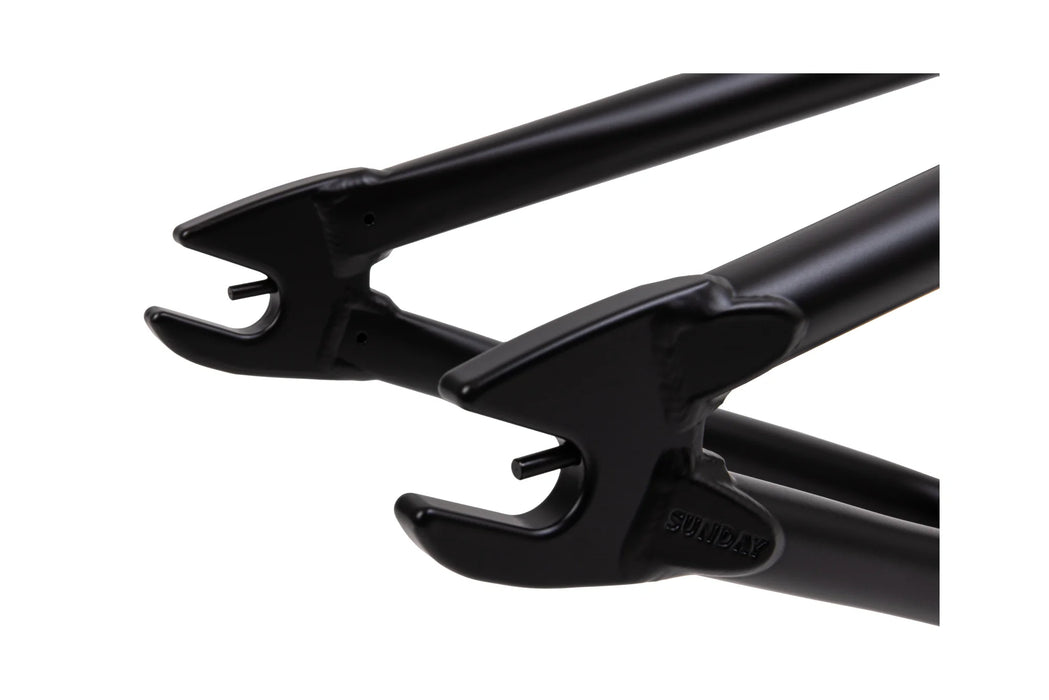

• Hollow Dropouts with Chain Tensioners:
  Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in position and to simplify wheel removal.
• Removable Brake Hardware:
  Proven, removable, brake mounts and cable guides/stops work flawlessly when installed and allow for a sleek overall look when they’re not.

Geometry

Top Tube Lengths: 18.5"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 11.70-12”
Bottom Bracket Height: 10.5”
Standover: 7.7”
Tire Clearance: 2.3”
Head Tube Length: 4.4"
