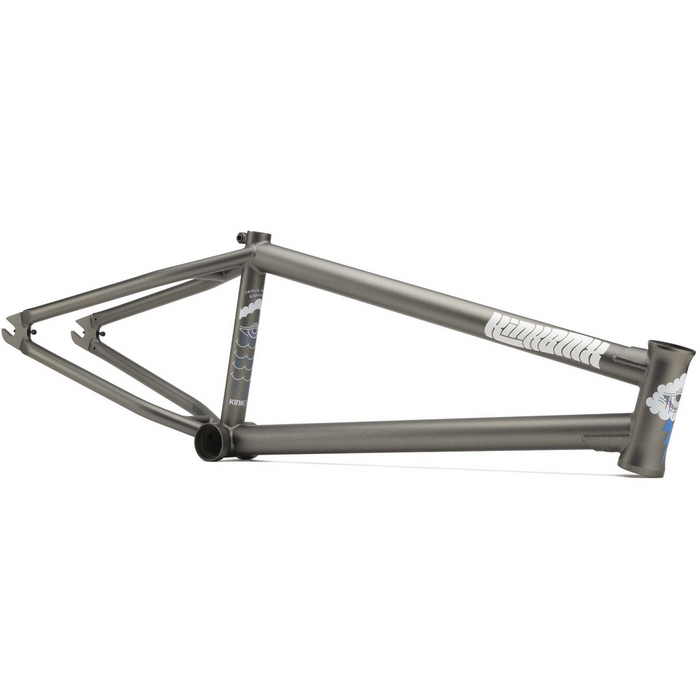

Kink Cloud Frame

Original price $442.23 - Original price $442.23
Original price $442.23
$346.40
$346.40 - $368.51
Current price $346.40
SKU
Choose a Color

The Kink Cloud Frame is The signature from of Kink BMX Pro, Travis Hughes.  This BMX frame was built to be simple and strong for not a lot of money.  Kink and Travis did away with all the pricey investment cast bridges and whatnot to keep cost down.  Don't let the price fool you though.  The Cloud may be simple and cheap but it's built to hold up to the riding Travis puts it through so you know it's tough!



Seatstay Bridge

Tried and true straight tube seatstay bridge, for a clean and classic look.


Dropout and Tensioners

Laser cut 6mm thick dropouts with integrated chain tensioners.


Headtube and Gussets

Featuring both toptube and downtube gussets and a 4.9" headtube length.

Geometry

Toptube Sizes 20.5” / 20.75” / 21” / 21.25”
Chainstay Length 13.5” Slammed
Bottom Bracket Height 11.65"
Standover Height 8.75"
Headtube Angle 75.5°
Seattube Angle 71°
Headtube Height 4.9"

Tech Spec

Material 100% 4130 Chromoly Tubing
Headtube Integrated Campy Spec
Dropouts Laser Cut with Integrated Chain Tensioners
Bottom Bracket Internally and Externally Machined Mid Size BB
Braking Brakeless
Particulars Toptube and Downtube Gussets
Integrated Chain Tensioners
Integrated Seat Clamp
Clean Lines
Weight 5lb 4oz (20.5")
