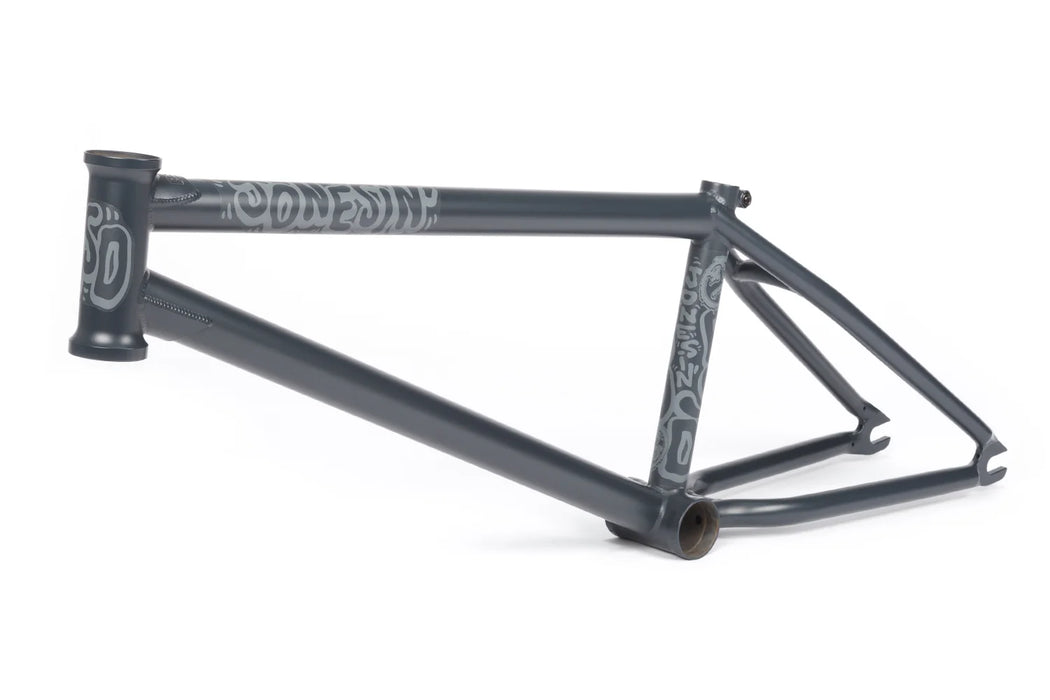

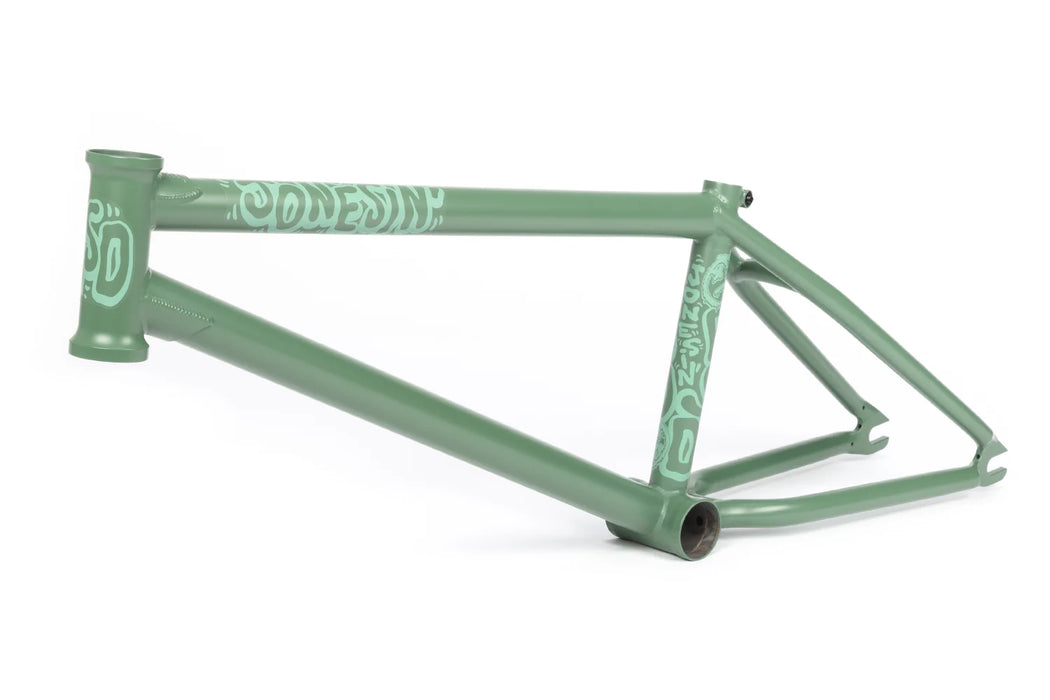

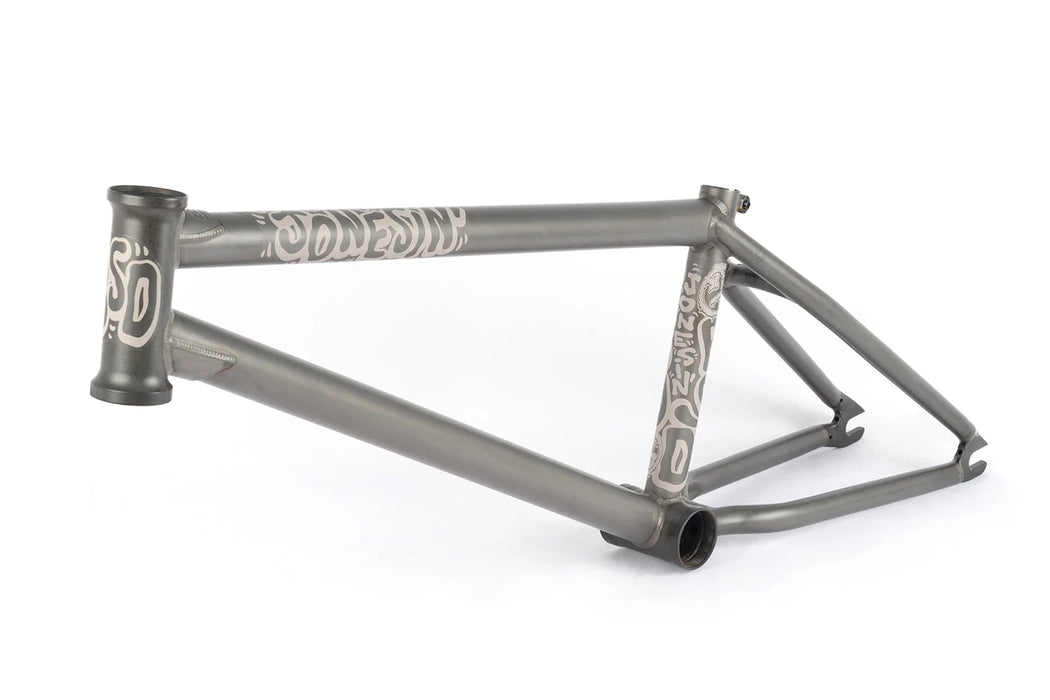

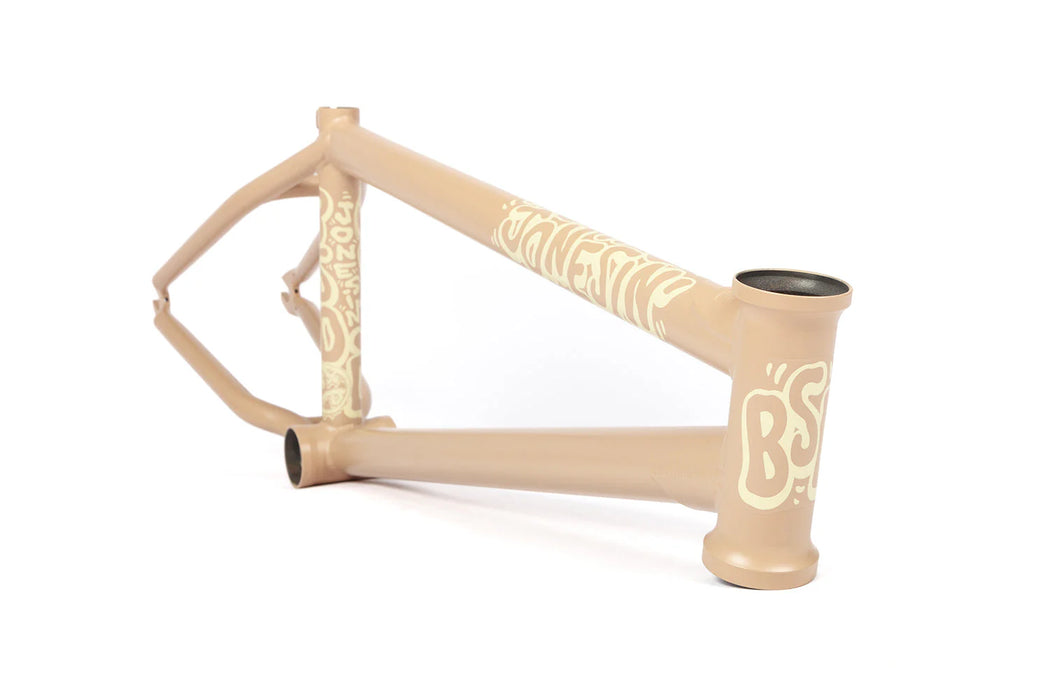

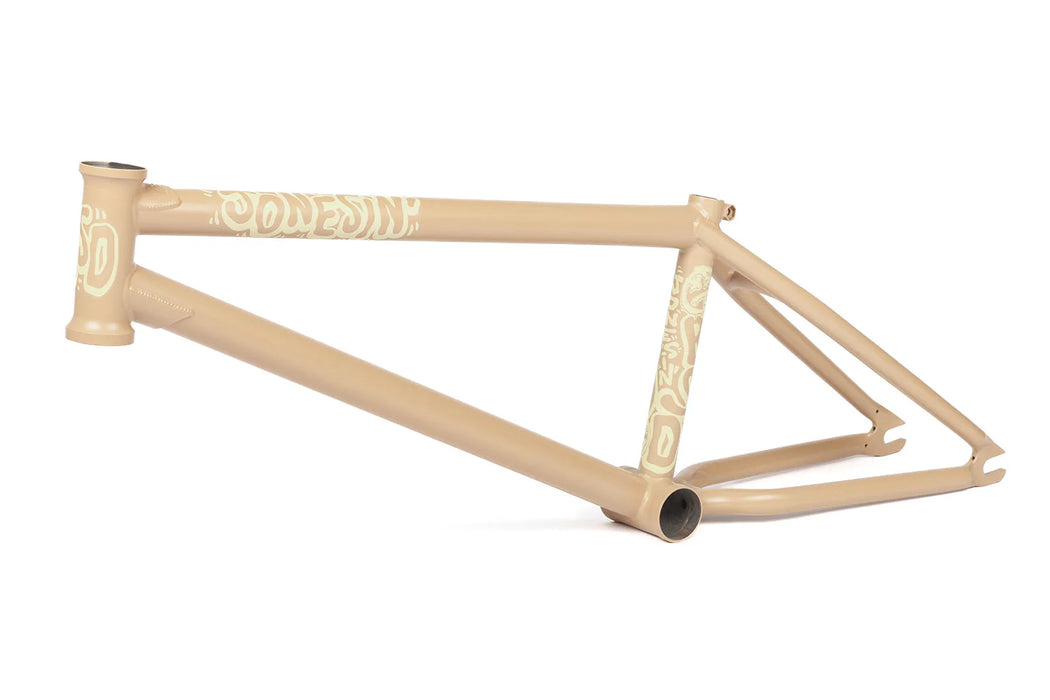

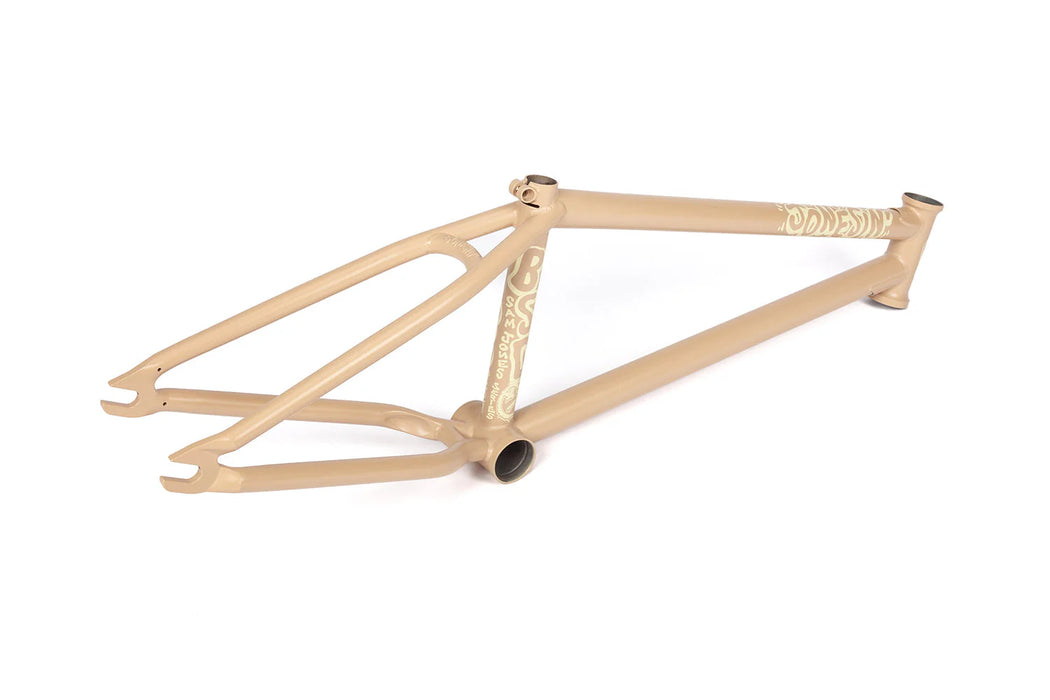

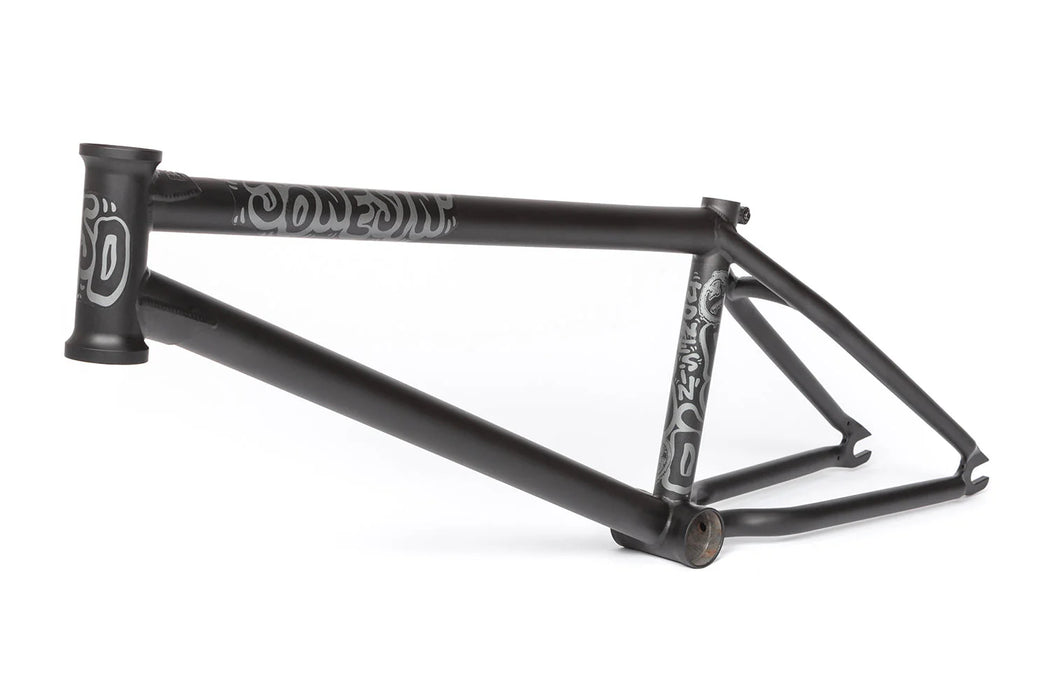

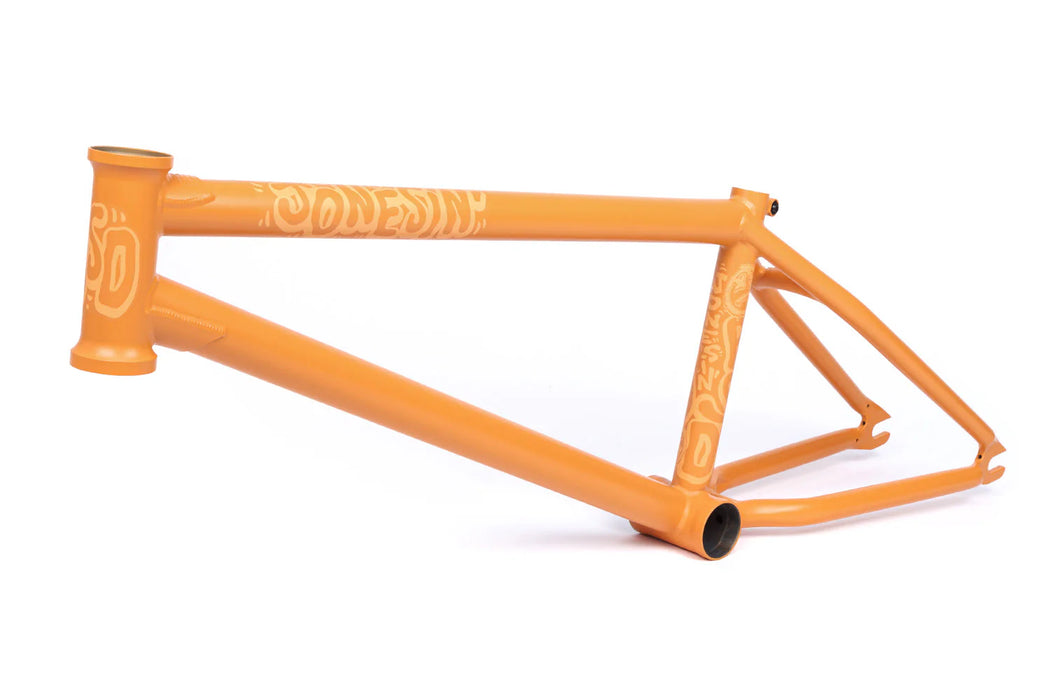

BSD Jonesin' Frame

The BSD Jonesin' Frame was designed for BSD team rider Sam Jones. Incase you didn't know Sam is a front wheel guru so it was only right for his frame to have a steeper headtube than average. The Jonesin' frame also has all the modern amenities of a street frame with its short rear end, taller stand over, and BSD's superscoop chainstay tubing for extra clearance to accommodate todays larger tires.

• Sam Jones signature
• Sanko Japanese seamless 4130 CrMo triple butted tubing

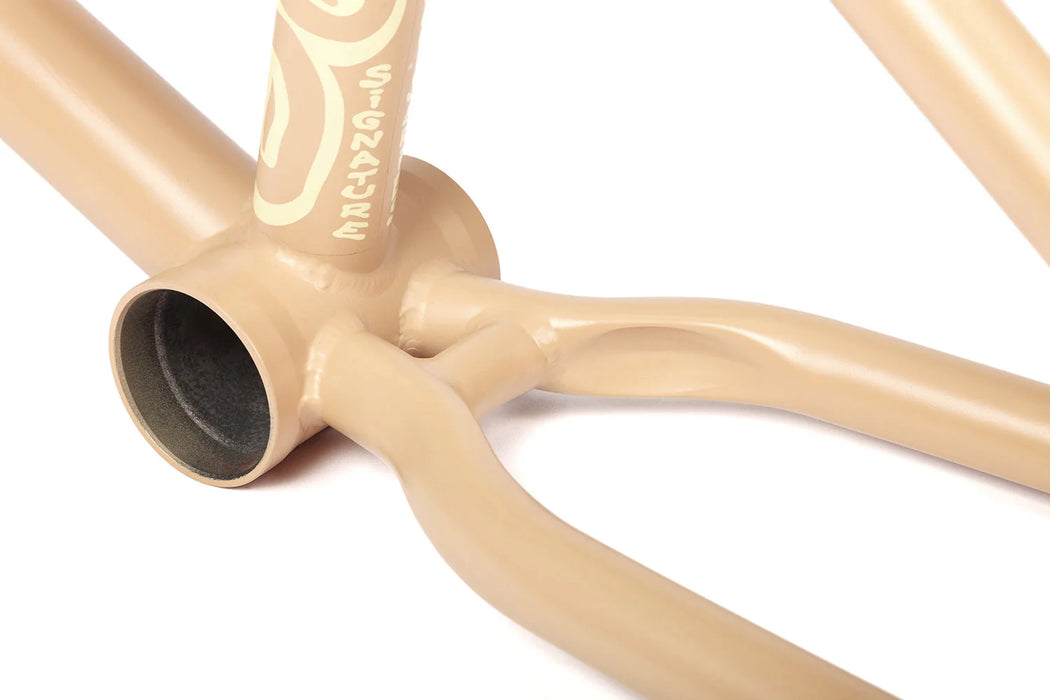

• Superscoop Chainstay: Our new Superscoop chainstay provides more tire clearance for when your wheel is slammed. The tubing is press formed post bending to create extra room where it's needed most without the need for an invest cast yoke.
• Invest Cast Dropouts: Because the dropout is cast as one piece it's much stronger than a plate welded to a tube. 7mm thick to provide good support for your axle, and the small shape has been designed for grinding meaning there's no overhang to catch on ledges or rails, also the dropout is heat treated before welding making it extra tough. And finally there;s an integrated chain tensioner bolts inside.

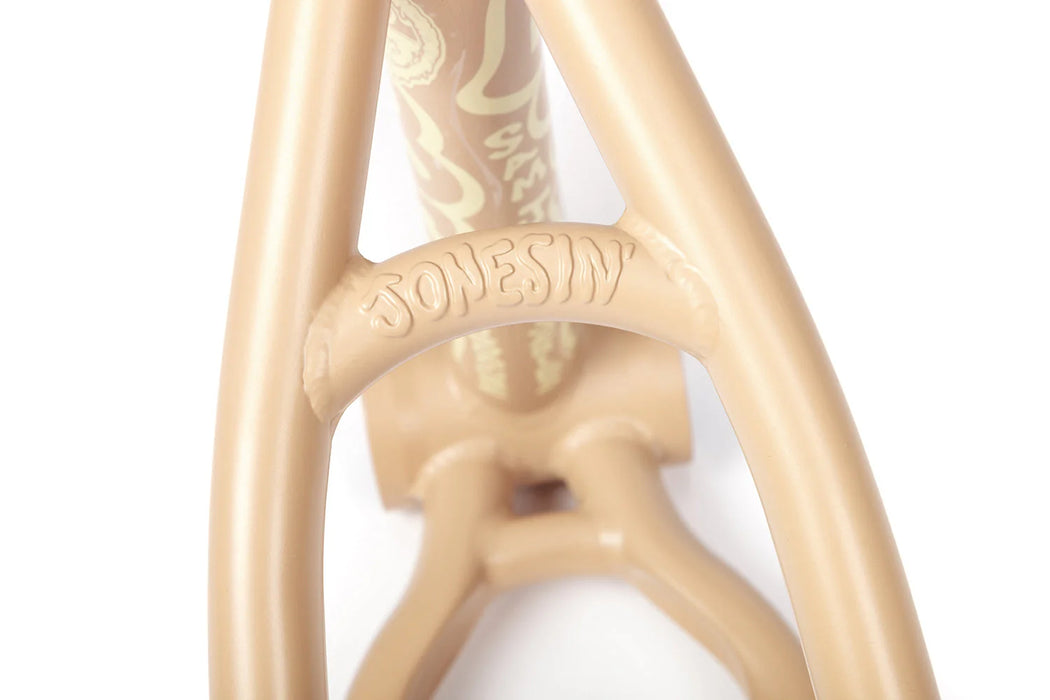

• Invest Cast Seatstay Bridge: BSD used a heat treated chromoly invest cast seatstay bridge on the Jonesin’ frame which creates a stronger and more rigid rear end. Also because it's invest cast they were able to add a debossed Jonesin' graphic onto it, neat huh?

Head Tube Angle: 76°
Head Tube Length: 117mm
Seat Tube Angle: 71°
Chainstay Length: 12.7-13.2"
BB Height: 11.7”
Standover: 8.9"
Weight: 5lbs
Brake Mounts: None (Brakeless)
