S&M BTM Frame
by S&M
Original price
$752.23
Original price
$752.23
-
Original price
$752.23
Original price
$752.23
Current price
$752.23
$752.23
-
$752.23
Current price
$752.23

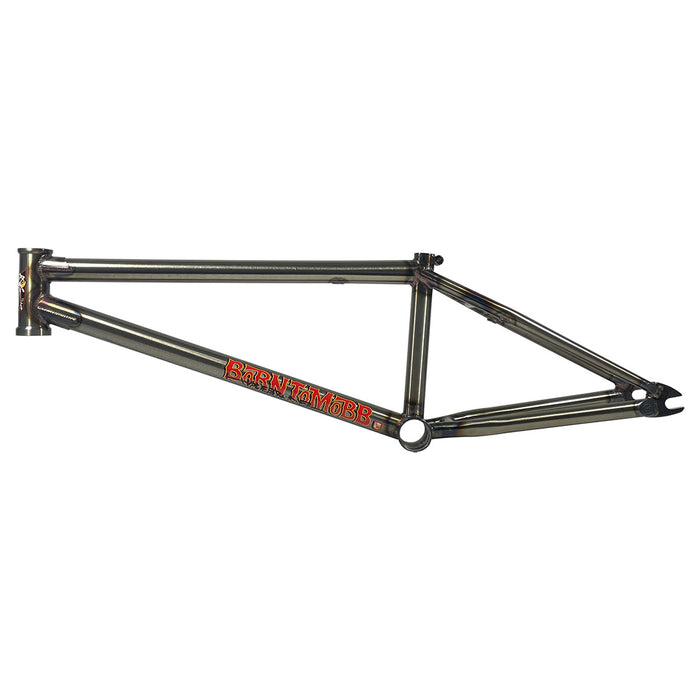

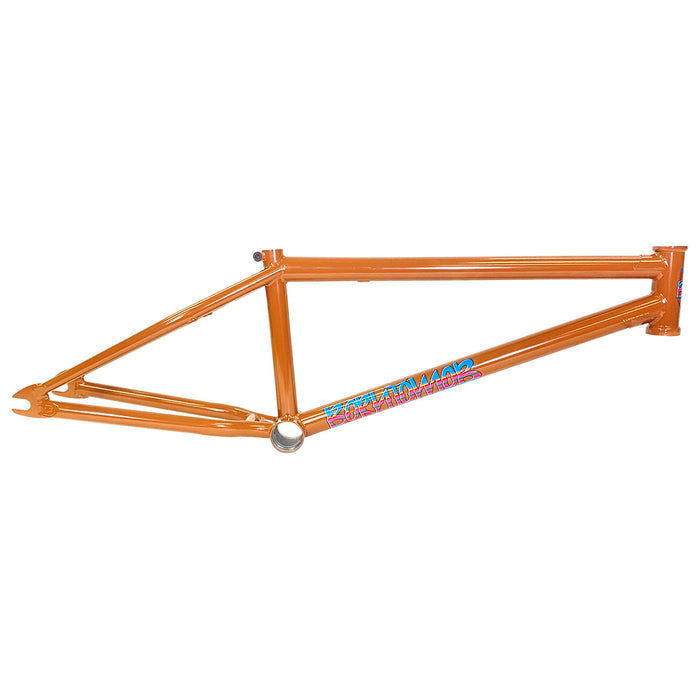

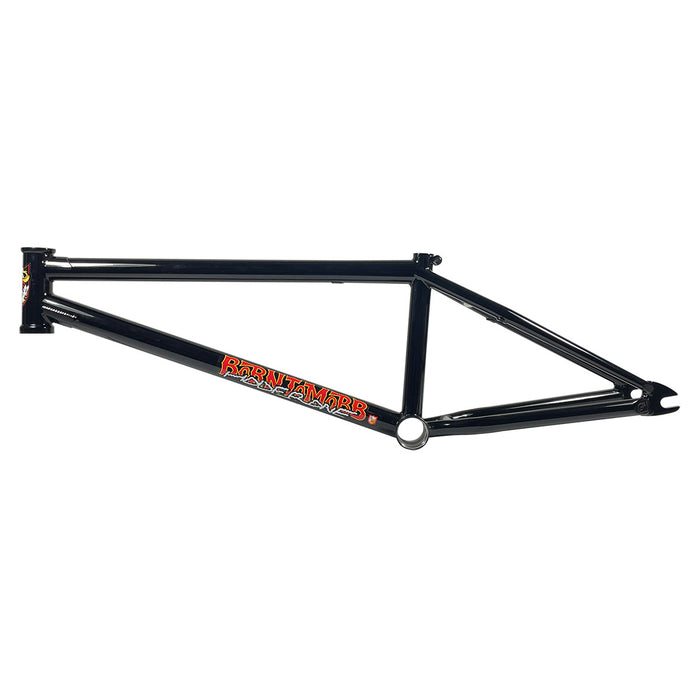

The S&M BTM Frame is the signature frame of S&M's craziest rider, Mike Hoder. Made in the USA by riders in SoCal the BTM features a shorter back end and all the strength you could need.
| TOP TUBE LENGTHS: | 20.5″,20.75″, 21″, 21.25″, 21.5″ |
| REAR END LENGTH: | 13.05″-13.50″ |
| HEAD TUBE ANGLE: | 75° |
| HEAD TUBE STYLE: | Integrated (45°/45°, 41.8mm) |
| SEAT TUBE ANGLE: | 71° |
| SEAT CLAMP: | Integrated |
| SEAT POST SIZE: | 1″ (25.4mm) |
| BB HEIGHT: | 11.5″ |
| BB STYLE: | Mid |
| STANDOVER HEIGHT: | 8.75″ |
| BRAKE MOUNTS: | Thread-On 990 Mounts (sold separately) |
| DROPOUTS: | 14mm Slot, 4Q-Baked |
| GYRO TABS: | None |
| WEIGHT: | 20.5”: 5lbs/2.26kg 20.75″: 5lbs/2.26kg 21″: 5.05lbs/2.29kg 21.25″: 5.10lbs/2.31kg 21.5″: 5.15lbs/2.33kg |
| TUBESET: | Butted True Temper SuperTherm Tubing |
